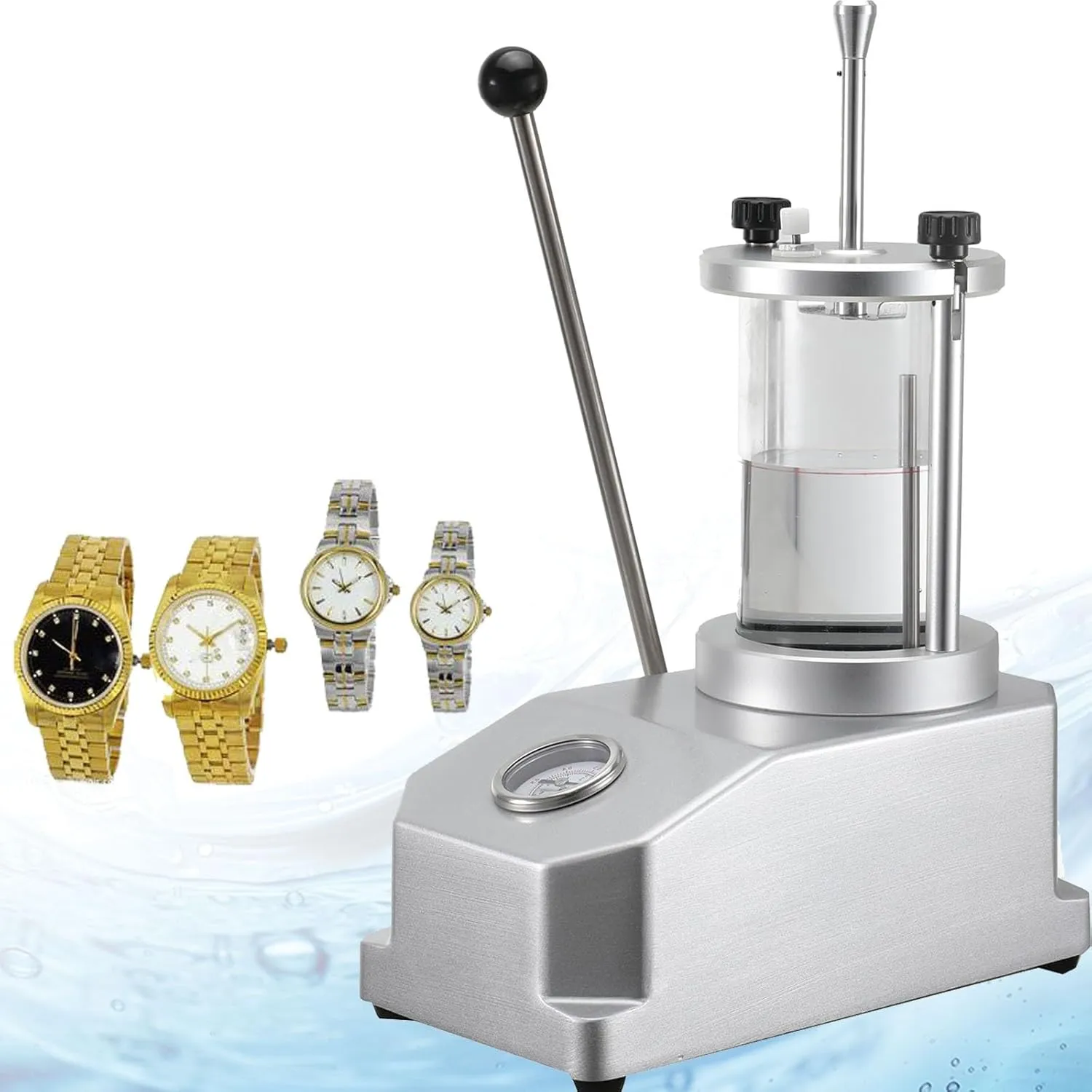

- 【Watch Pressure Tester】The air pressure of the watch waterproof tester can be adjusted up to 6 ATM, allowing for testing of watches with waterproof levels up to 6ATM. The pressure difference between the inside and outside of the test watch effectively tests waterproof performance.
- 【Transparent Cylinder Design】The transparent cylinder makes it easy to observe which part of the watch is not waterproof. Air bubbles may be visible in spilled product, indicating leaks.
- 【Simple and efficient】The watch waterproof tester can test up to two watches at a time, making it simple and efficient. Test the waterproof performance of watches effectively and easily.
- 【Wide Range of Applications】Specially designed to test watch cases, this tool is perfect for businesses, watch enthusiasts, and repair shops. Ensure the water resistance of watches with this versatile tool.
- 【Note】After decompression, a pressure difference appears on the test meter, allowing for visual observation of small bubbles at leak points through the transparent cylinder. Test the waterproof performance of watches with ease.
Specification:
Material: Metal
Pneumatic Test Range: 0.3-6.0bar
Maximum Test Diameter|: 65mm/2.6inch
Maximum Test Height: 72mm/2.8inch
External Air Pressure Connection: 6N
Cylinder Maximum Pressure: 10 bar
Cylinder Outer Diameter: 80mm/3.2inch
Cylinder Inner Diameter: 65mm/2.6inch
Cylinder Height: 138mm/5.4inch
Size: Approx. 24 * 14 * 27cm/9.5 * 5.5 * 10.6inch
Weight: Approx. 3800g
Principle:
Pressurization to the sealed box can simulate the state of the product dozens of meters underwater. Pressure difference between the inside and outside of the product will be generated after the pressure relief of the sealed box. Air bubbles can be visually seen in the leaking product.
Usage:
1. Pull the watch lever as far as possible
2. Loosen two screws and remove the lid
3. Pull water into it until reaching the designated red line of the bucket
4. Hang your watch on the pole
5. Fix the lid and tighten the screws
6. Shake the pressure lever to achieve 3 air pressure (the official standard of watch industry), and wait for three minutes to let air enter the whole watch
7. Press down the pole, let the watch immersed in water, press down the exhaust button, let the air out
8. When the pressure drops, observe whether there are bubbles from the watch, if there are bubbles, then the watch sealing is not good, quickly pull the pole and take out the watch. No bubble appears, the watch sealing is very good.
- Date First Available : June 16, 2025
- Manufacturer : Erxewim
- Country of Origin : China
