KStrong® Small Steel Carabiner (ANSI)
Product Code: UFC401100

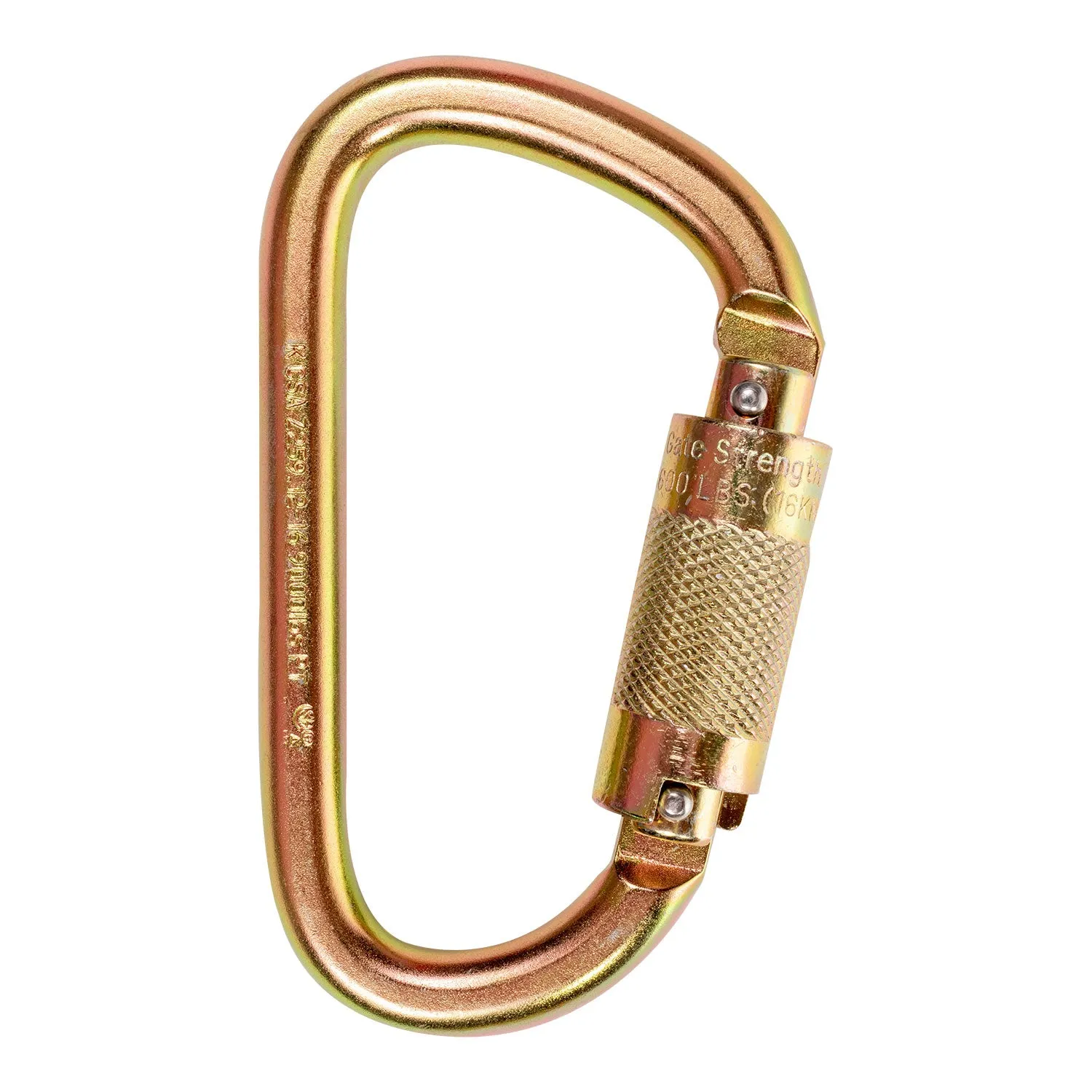

The KStrong® Quarter Turn Locking Steel Carabiner with a 0.84" gate opening is a robust and reliable safety device designed for various industrial applications. This oval-shaped carabiner is constructed from a 0.43" diameter alloy steel round bar, ensuring high strength and durability. It features a self-closing and automatic locking mechanism that secures with a quarter turn nut. The yellow chromate finish provides additional corrosion resistance. With a minimum breaking strength of 5000 lbs., this carabiner is built to handle heavy loads and meets or exceeds ANSI Z359.12-2009 standards.
Feature | Specification |
|---|---|
| Product Name | KStrong® Quarter Turn Locking Steel Carabiner with .84″ gate opening (ANSI) |
| Design | Gate opening 0.84” (21mm), oval-shaped, self-closing and automatic locking with a quarter turn nut |
| Material | Alloy Steel |
| Finish | Yellow Chromate |
| Minimum Breaking Strength | 5000 lbs. (2268kg) |
| Gate Face Strength | 3600 lbs. (1633kg) |
| Gate Side Strength | 3600 lbs. (1633kg); Minor Axis: 3600 lbs. (1633kg) |
| Weight | 0.58 lbs. ± 0.02 lbs. (265 gm. ± 10 gm) |
| Relevant Standard | Meets or Exceeds ANSI Z359.12-2009 |
