- Affordable Ultra Compact Class D Fixed Mount VHF Radio. Meets ITU-R M493-13 Class D DSC (Digital Selective Calling). Replaces older Eclipse and Eclipse DSC Models
- Radio controls on the Microphone. E2O Easy to Operate Icon/Menu System. Oversized Full dot matrix display (31 mm x 55 mm). Built in Separate Receiver for CH70 (Receiving DSC Calls)
- DSC test call and Auto DSC channel change selection. GPS position and Time Shown on a Full-dot Matrix Display when Connected to a GPS Receiver. NMEA In and Output Connections to a Compatible GPS Chart Plotter
- Programmable soft keys. Automatically poll the GPS position of up to 4 ships using DSC. Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)
- All USA/International and Canadian Marine Channels. Preset key used to recall up to 10 favorite channels. NOAA weather channel selection with Weather Alert. Programmable Scan, Priority Scan, and Dual Watch

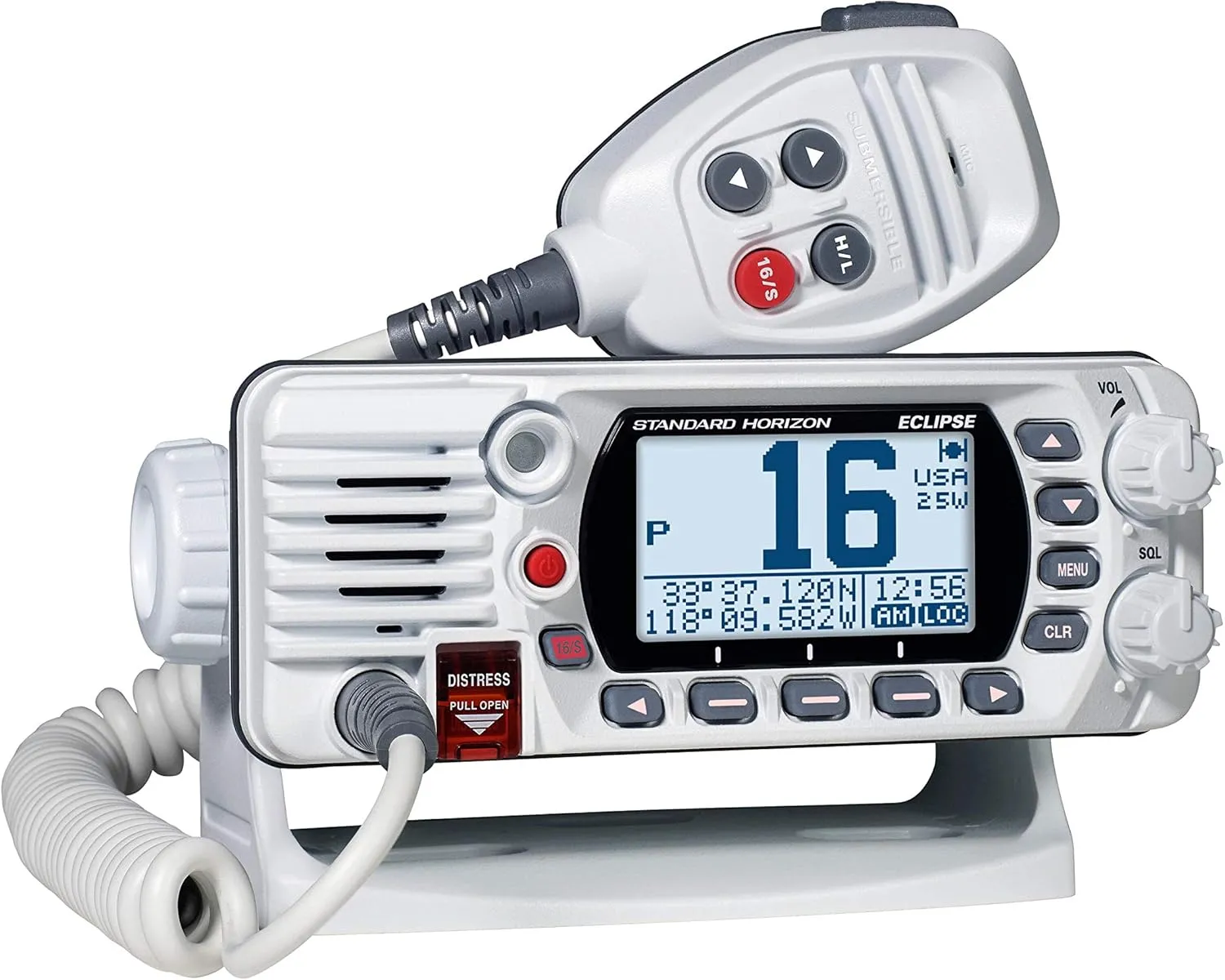

Standard Horizon GX1400 Eclipse VHF Radio
The GX1400 Eclipse Series is an ITU-R M493-13 Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications. The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, Urgency, Safety, Position Report and Send
The high resolution dot matrix display makes navigating the radio's many features smooth and easy. Now with a new brighter backlight for better display contrast
Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier
If your Eclipse Series radio fails for any reason (including water damage) during normal use for the first 3 years of ownership, Standard Horizon will repair or replace it free, without hassles or charges. If it fails for anytime thereafter in normal use, for as long as the original purchaser owns the radio, Standard Horizon's Lifetime Flat Rate and Customer Loyalty Service Programs will cover it
Features
- 25W Marine VHF
- DSC Class-D
- Compact Rear Case Design
- WHD 157 x 62 x 100 mm
- IPX8 Submersible Design
- E2O Easy to Operate menu system
- Standard Horizon Clear Voice
- Bright Back light/Dot Matrix Display
- Microphone with Keys
Specifications- Display: 2.5" diag. LCD
- Control Type: Pushbuttons for channel change
- Power: 25 Watts, 1 Watt
- Interface: NMEA 0183 in/out
- Other Functions: Scan functions, programmable softkeys, position polling, Class D DSC.
- Dimensions: 2.4"H x 6.2"W x 3.9"D
- Warranty: 3 Year
In the Box- GX1400 Eclipse VHF
- Mounting bracket
- Power cord
- Owner's manual
- Product Dimensions : 10 x 8 x 4 inches; 2.99 Pounds
- Date First Available : February 18, 2020
- Manufacturer : Yaesu
