The lightweight WILLIAM large-capacity asymmetric carabiner is made of aluminum. It has a pear shape that is practical for easily connecting multiple items. Its fluid interior design and Keylock system facilitate handling. The WILLIAM carabiner is available in three locking systems: automatic TRIACT-LOCK or BALL-LOCK system, or the manual SCREW-LOCK system.
Detailed description
Description
- Pear shape offers a large capacity and wide opening:
- facilitates connection of multiple items
- allows Munter hitch use for escape - Aluminum carabiner whose light weight reduces the weight of equipment the worker at height needs to carry
- Easier handling:

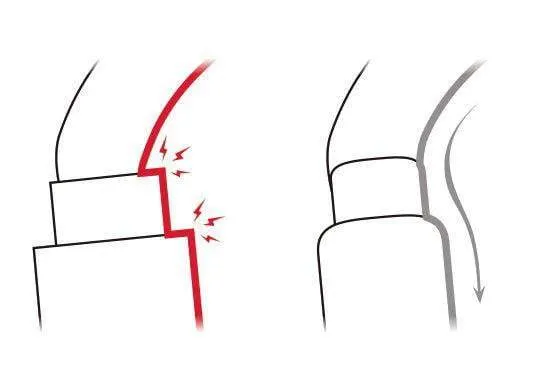

- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system to avoid any involuntary snagging of the carabiner - H cross-section:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion - Available in three different locking systems:

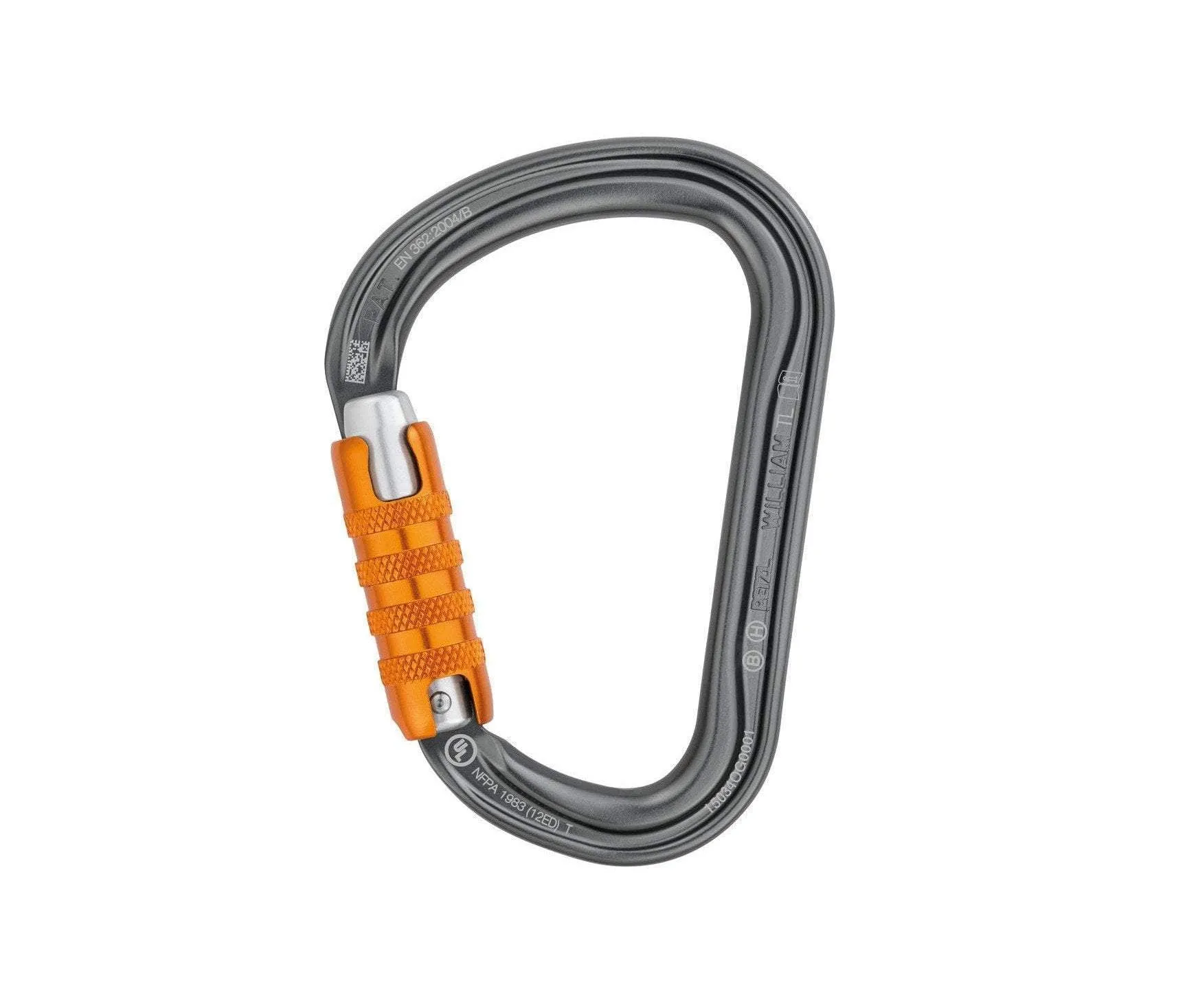

- TRIACT-LOCK: automatic locking with triple-action gate opening

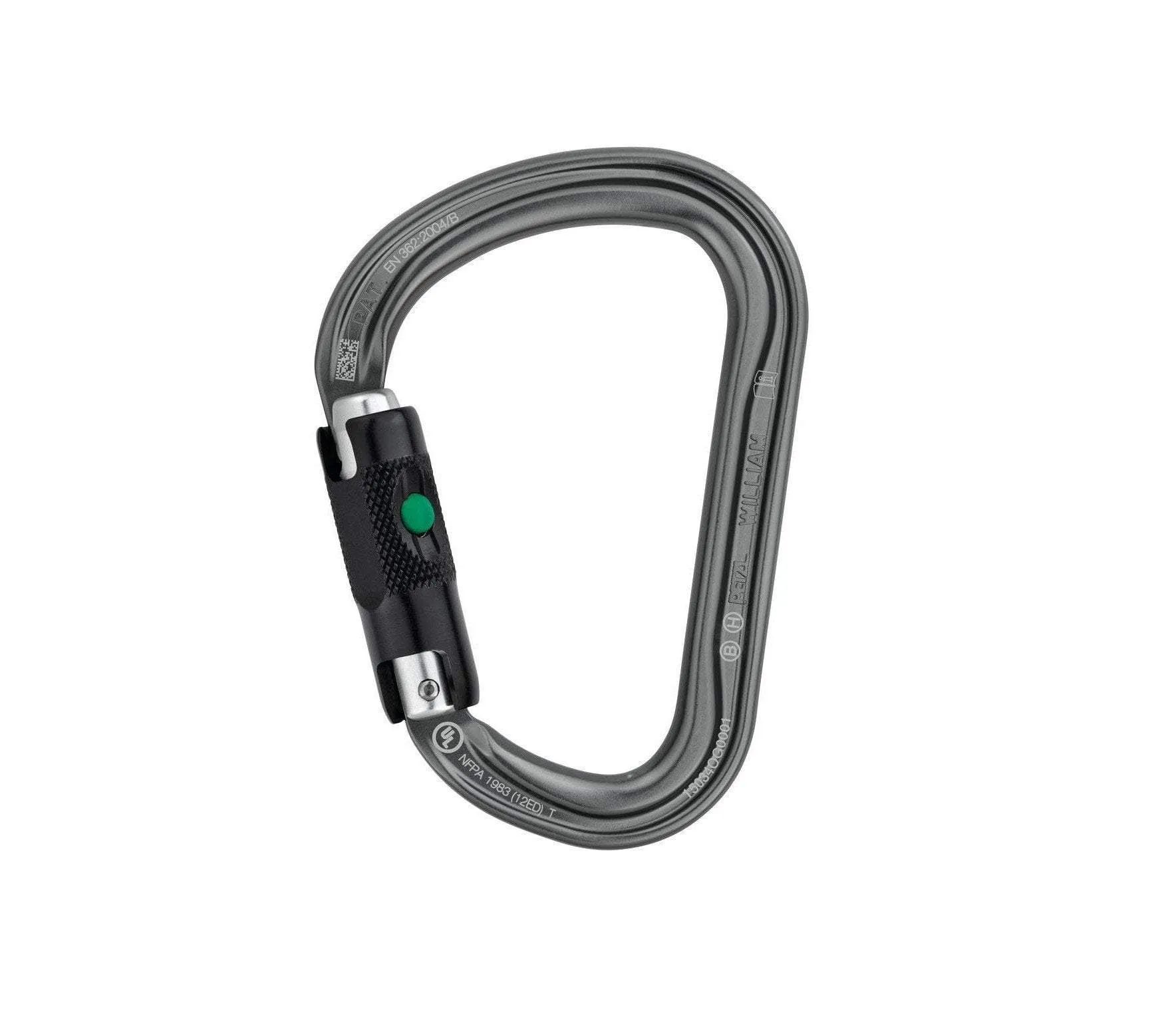

- BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator

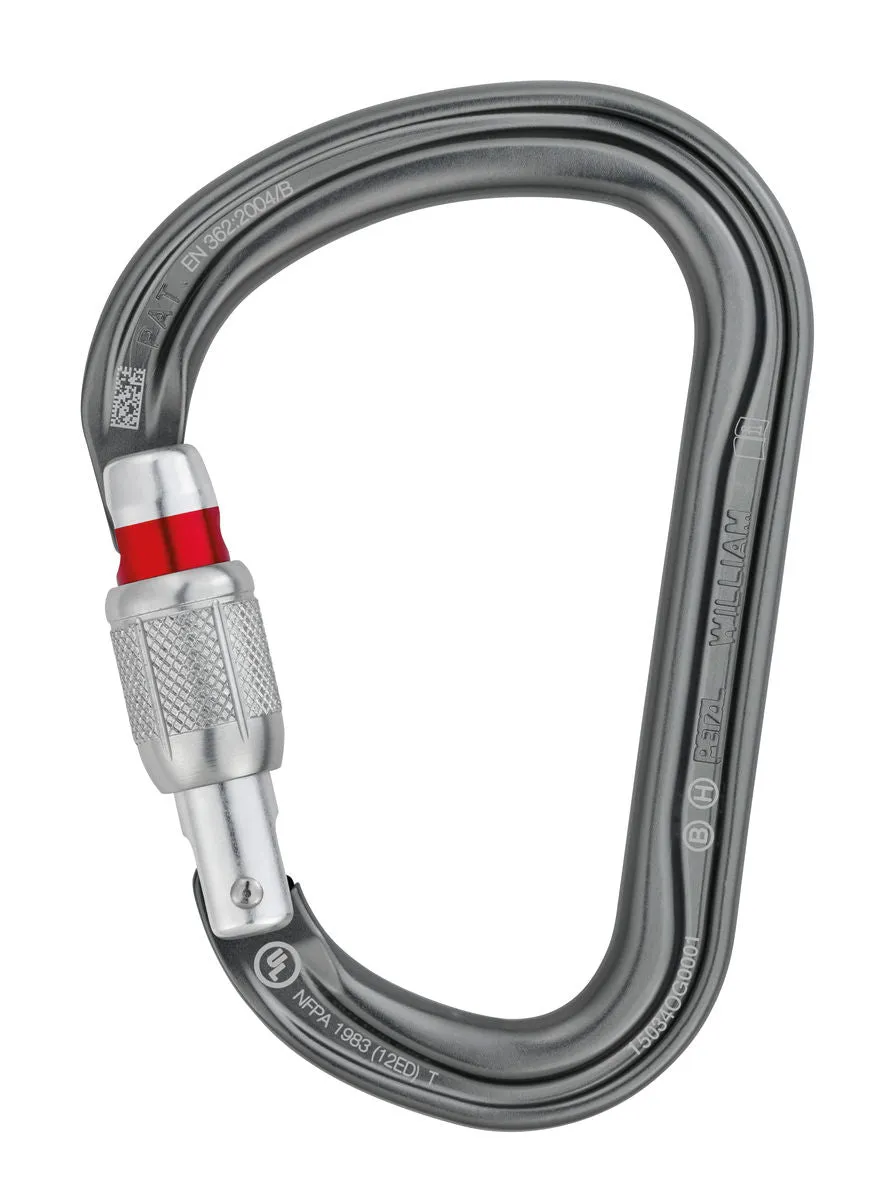

- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked - Also available in black (TRIACT-LOCK and SCREW-LOCK)
Specifications
- Material(s): aluminum
- Certification(s): CE EN 362, EAC, NFPA 1983 Technical Use
References
| References | M36A TL | M36A BL | M36A SL | M36A TLN | M36A SLN |
|---|---|---|---|---|---|
| Weight | 90 g | 90 g | 85 g | 90 g | 85 g |
| Locking system | TRIACT-LOCK | BALL-LOCK | SCREW-LOCK | TRIACT-LOCK | SCREW-LOCK |
| Color(s) | gray | gray | gray | black | black |
| Major axis strength | 27 kN | 27 kN | 27 kN | 27 kN | 27 kN |
| Minor axis strength | 8 kN | 8 kN | 8 kN | 8 kN | 8 kN |
| Open gate strength | 8 kN | 8 kN | 8 kN | 8 kN | 8 kN |
| Gate opening | 27 mm | 27 mm | 28 mm | 27 mm | 28 mm |
