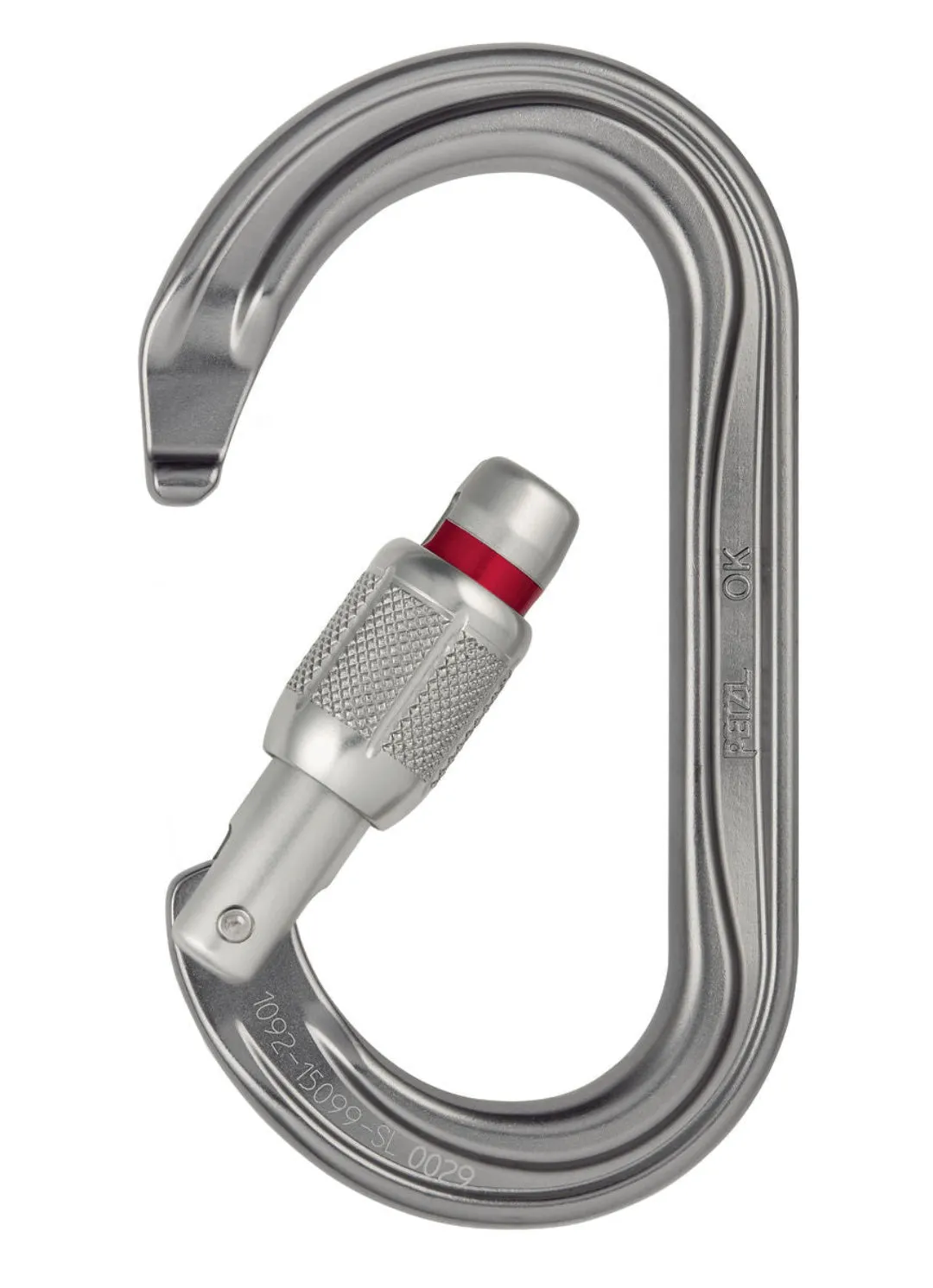

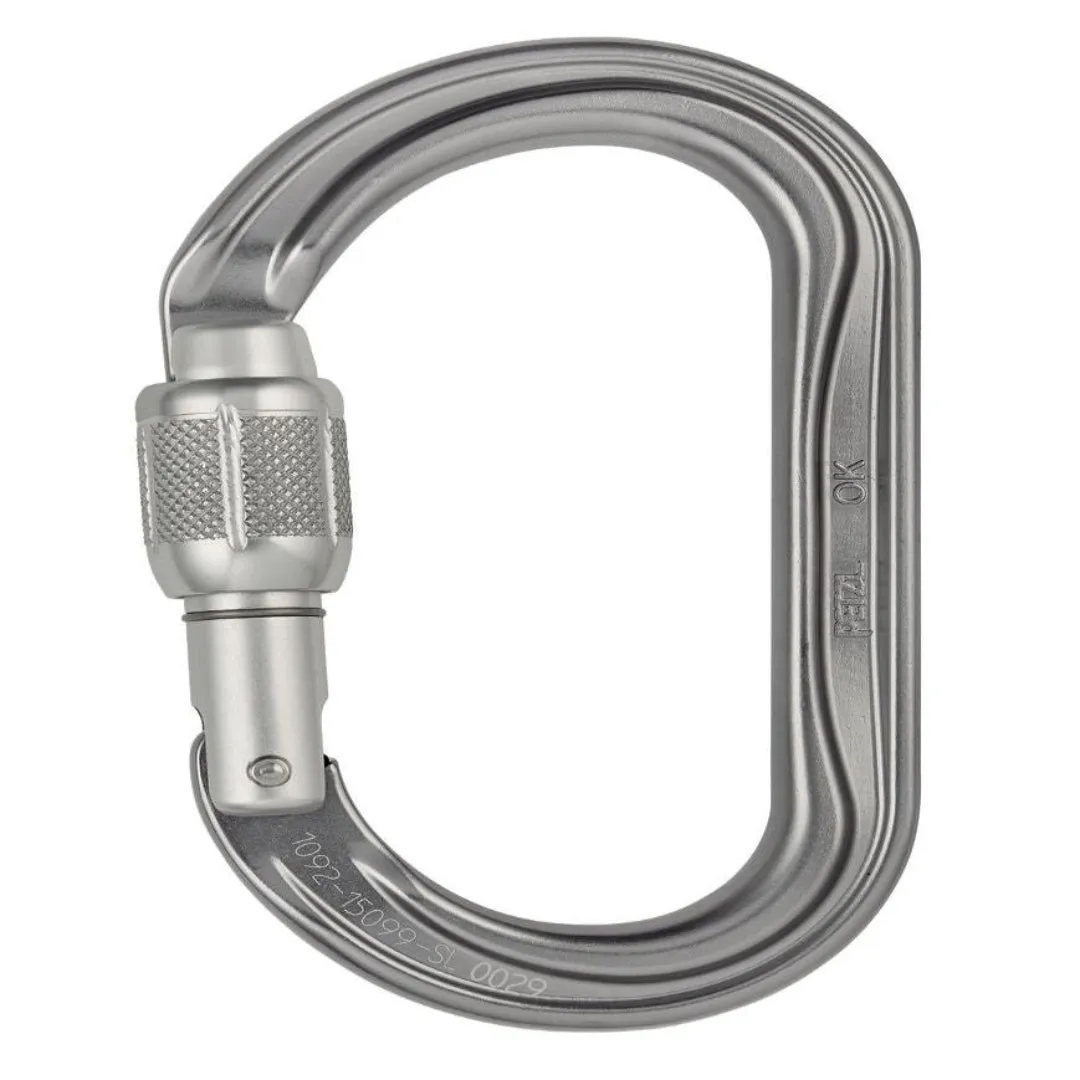

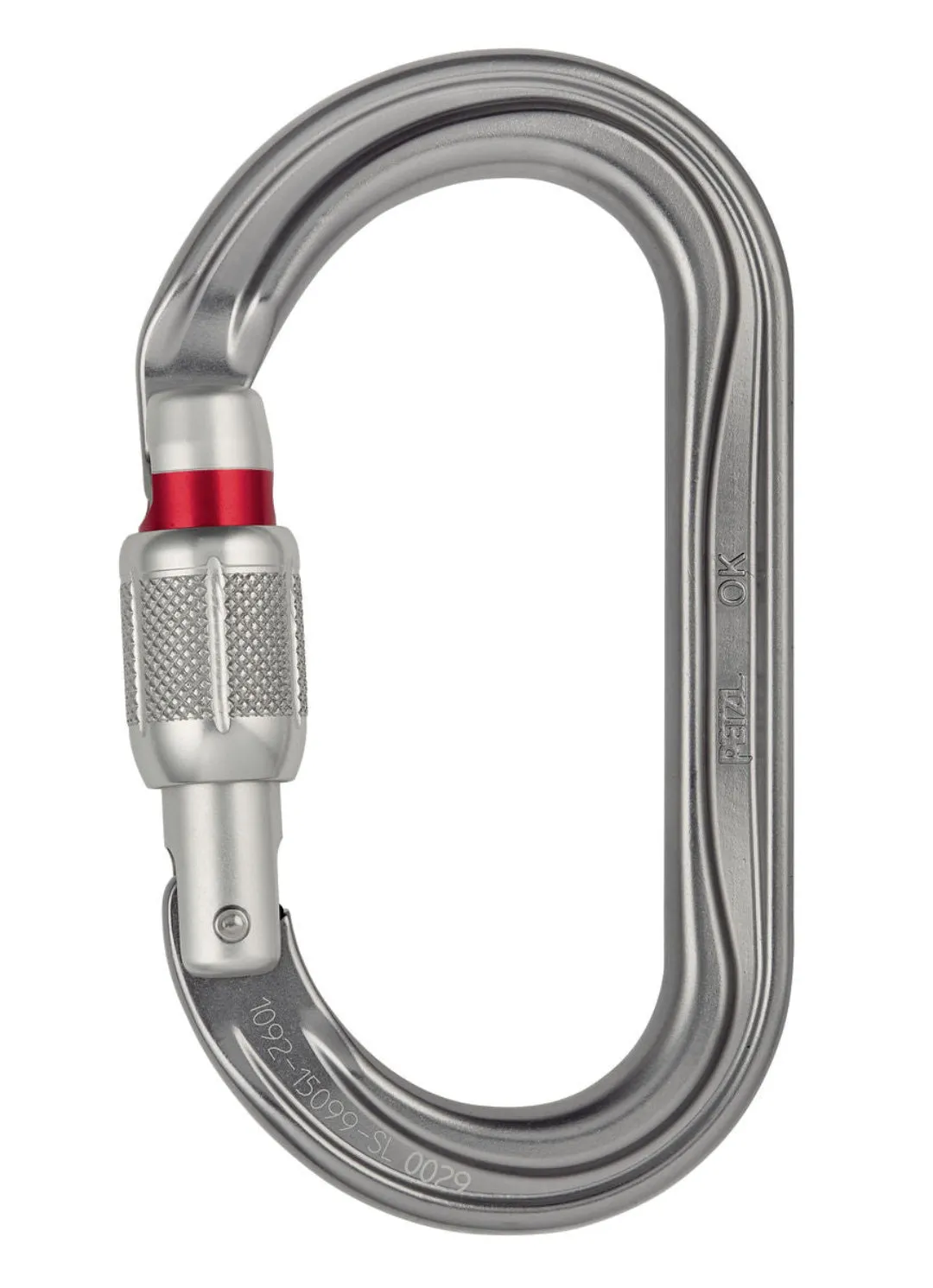

Oval carabiner for use with pulleys and ascenders
Lightweight aluminum carabiner with a symmetrical oval shape that allows optimal loading of devices with a wide cross-section, such as pulleys, ascenders and progress-capture pulleys. • Available in three locking systems (SCREW-LOCK, TRIACT-LOCK and BALL-LOCK)
Detailed description
Description
- Symmetrical oval shape allows optimal loading of devices with a wide cross-section, such as pulleys, ascenders and progress-capture pulleys
- Easier handling:
- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system helps avoid any involuntary snagging of the carabiner
- the H cross-section contributes to better grip, protects the markings from abrasion and reduces weight - Available in three different locking systems:
- SCREW-LOCK: easy-to-open system can be locked or not according to need. The red indicator provides a visual warning when the carabiner is unlocked. This system is ideal for harsh environments where contaminants (mud, ice) could cause an automatic locking system to jam
- TRIACT-LOCK: automatic locking system designed for frequent manipulation. The triple-action opening consists of raising and turning the sleeve, then pressing on the gate
- BALL-LOCK: automatic locking system designed for frequent manipulation, with lock indicator. The triple-action opening consists of pressing on the green indicator, turning the sleeve, then pressing on the gate. The green button indicates when the gate is locked.
Specifications
- Material(s): Aluminum
- Certification(s): CE EN 12275, UIAA, CE EN 362, EAC, GB/T 23469 / B
References
| References | M33A SL | M33A TL | M33A BL |
|---|---|---|---|
| Weight | 70 g | 75 g | 75 g |
| Locking system | SCREW-LOCK | TRIACT-LOCK | BALL-LOCK |
| Color(s) | Gray | Gray | Gray |
| Major axis strength | 25 kN | 25 kN | 25 kN |
| Minor axis strength | 8 kN | 8 kN | 8 kN |
| Open gate strength | 7 kN | 7 kN | 7 kN |
| Gate opening | 22 mm | 22 mm | 23 mm |
| Guarantee | 3 years | 3 years | 3 years |
| Inner Pack Count | 1 | 1 | 1 |
Technical information
Technical notice
- Download the PDF : technical-notice-OK-TRIACT-LOCK-1 - 1.61 MB
- Download the PDF : technical-notice-locking-carabiners-2 - 2.15 MB
Declaration Of Conformit
- Download the PDF : UE-Declaration-M33A-BL-OK-Ball-Lock - 0.65 MB
- Download the PDF : UE-Declaration-M33A TL-M33A-TLN-OK-Triact-Lock - 0.65 MB
- Download the PDF : UE-Declaration-M33A-SL-SLN-OK-Screw-Lock - 0.65
