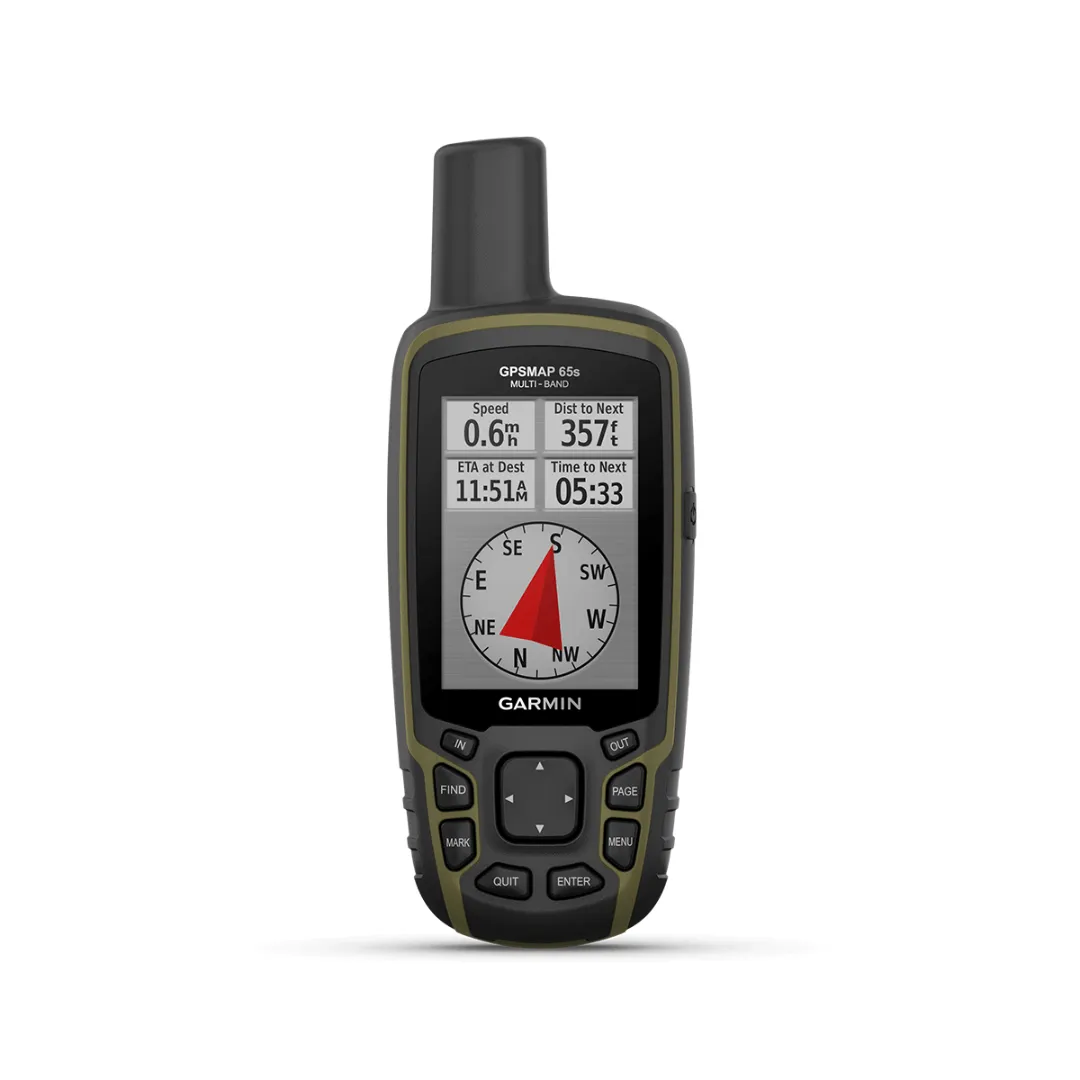

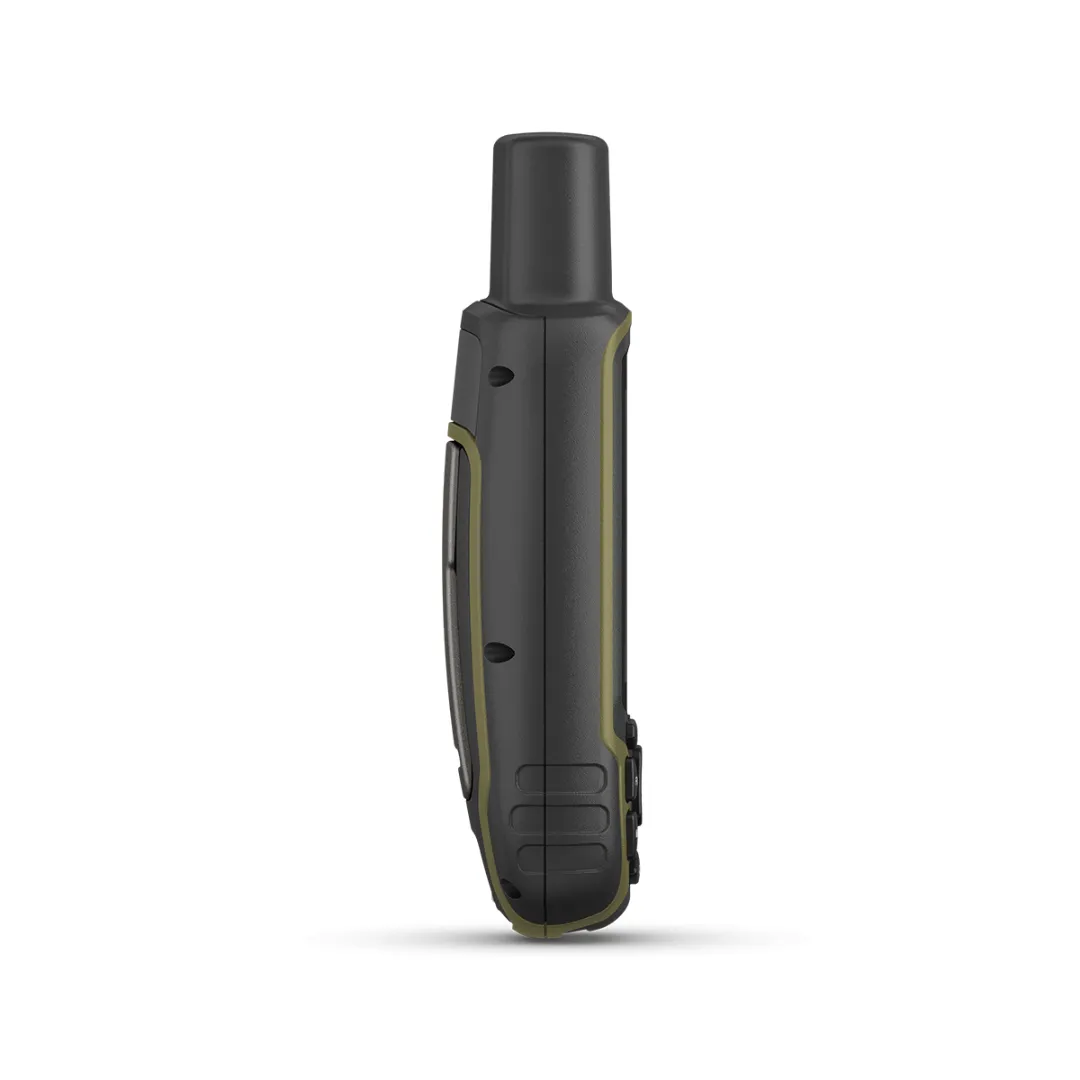

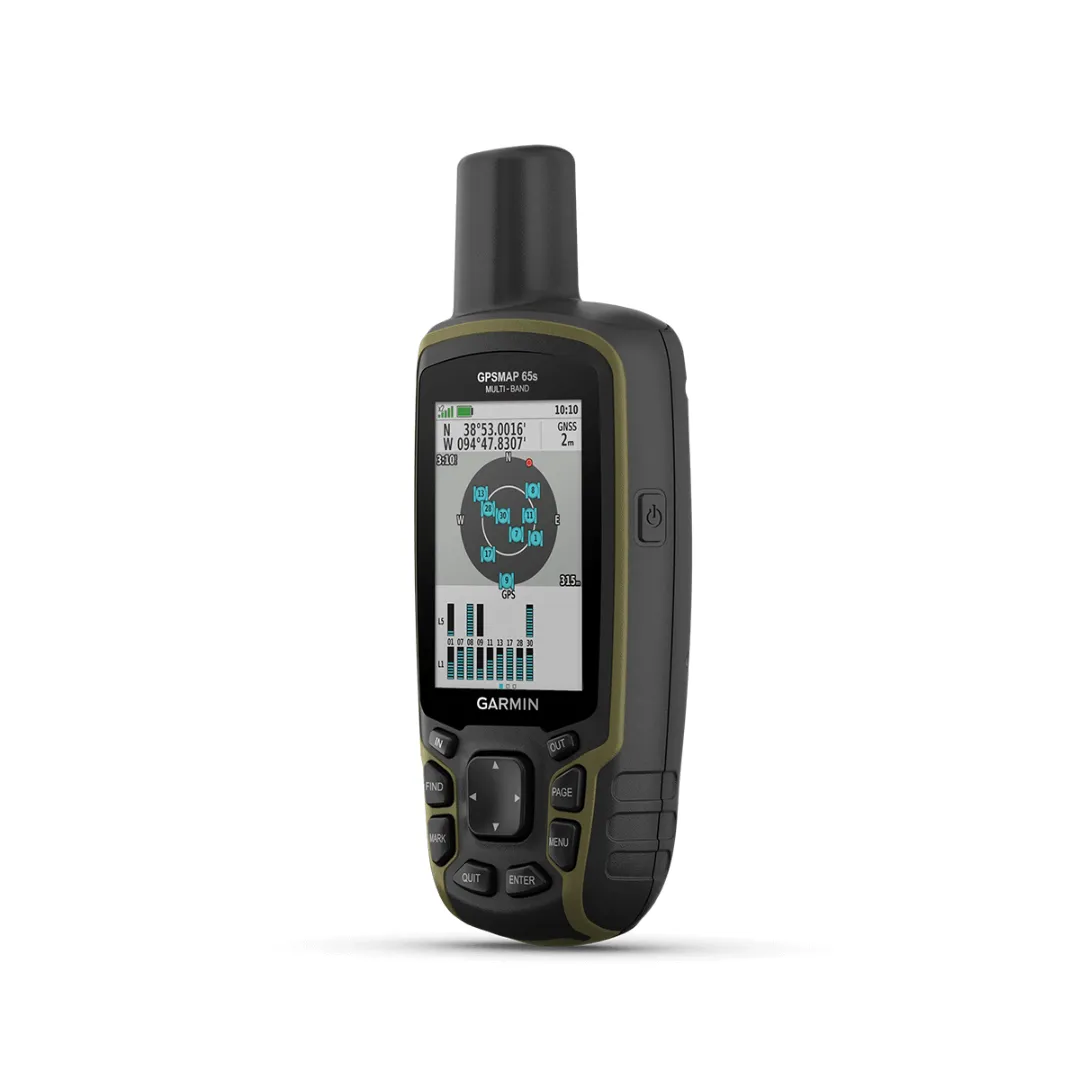

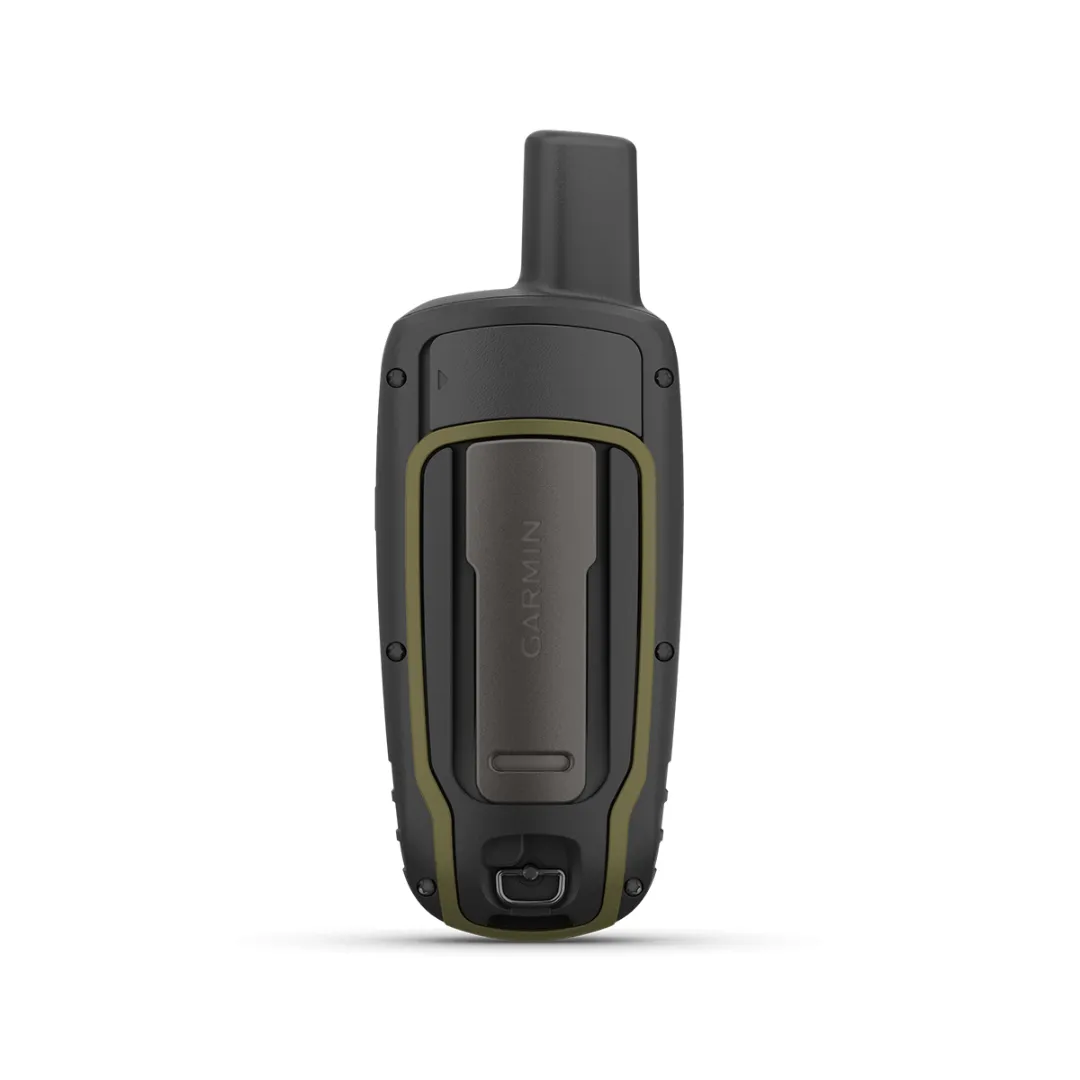

Multi-Band GPS Handheld with Sensors
PART NUMBER 010-02451-10
Find Your Way In This Big, Wide World
Explore more with this rugged handheld that offers multi-band frequency support for our most accurate position to date, a 2.6” color display and preloaded maps.
- Don’t miss a detail with this large, sunlight-readable color display.
- Lead the way in challenging locations with multi-band technology and expanded GNSS satellite support.
- Plot your next move with built-in navigation sensors.
- Organize your adventure from anywhere with the Garmin Explore website and app.
- Travel with up to 16 hours of battery life in GPS mode.
Expanded Gnss Support
Access multiple global navigation satellite systems (GPS, GLONASS, GALILEO and QZSS) to track in more challenging environments.
Multi-band Frequency Support
Receive and utilize multiple frequencies sent by navigation satellites which enables improved user position accuracy, specifically in areas where GNSS signals are reflected, weak or typically do not penetrate. Get superior accuracy using state of the art technology, previously only available to the military.
ABC Sensors
Navigate every trail with ABC sensors, including an altimeter for elevation data, barometer to monitor weather and 3-axis electronic compass.

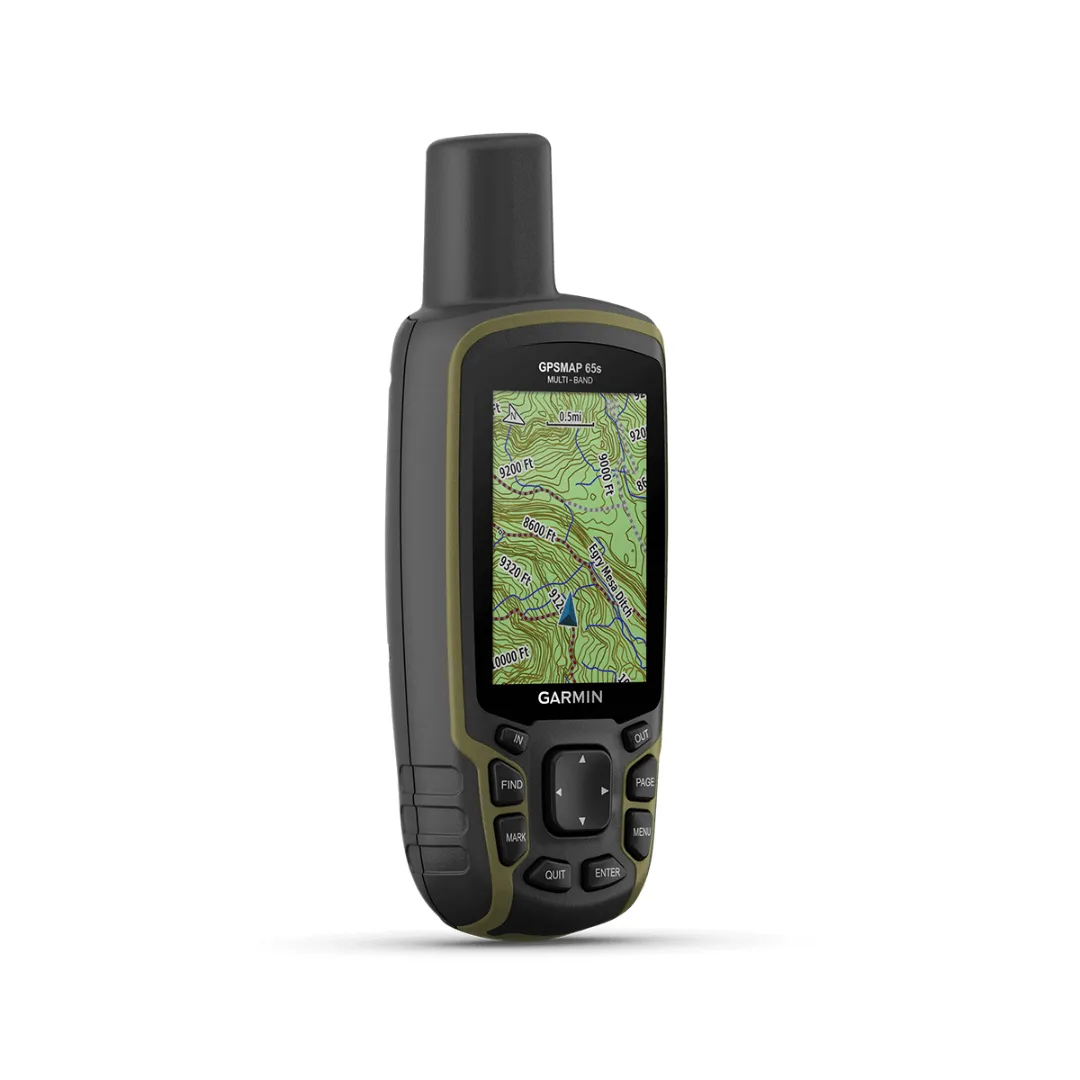

Preloaded TopoActive U.S. and Canada maps show you terrain contours, topographic elevations, summits, parks, coastlines, rivers, lakes and geographical points.
Public Land Boundaries
An optional display of federal public land boundaries on topographical maps helps you know that you’re venturing where you’re supposed to be.
Garmin Explore App
Plan, review and sync waypoints, routes and tracks by using the Garmin Explore app1 and website. You can even review completed activities while still in the field.
SMART NOTIFICATIONS
Receive emails, texts and alerts right on your handheld when paired with your compatible device.
Geocaching
Get paperless geocaches by uploading GPX files straight to your device. View key information such as location, terrain and hints from Geocaching.com.
Microsd™ Slot
Using your compatible device and microSD memory card, conveniently download TOPO 24K maps and hit the trail, or access HuntView Plus maps to see public land types and boundaries as well as private landowner names and boundaries.
Specifications
General
| DIMENSION | 2.4" x 6.3" x 1.4" (6.1 x 16.0 x 3.6 cm) |
|---|---|
| DISPLAY SIZE | 1.43" x 2.15" (3.6 x 5.5 cm); 2.6" diag (6.6 cm) |
| DISPLAY RESOLUTION | 160 x 240 pixels |
| DISPLAY TYPE | transflective, 65K color TFT |
| WEIGHT | 7.7 oz (217 g) with batteries |
| WATERPROOF | IPX7 |
| BATTERY TYPE | 2 AA batteries (not included); NiMH or Lithium recommended |
| BATTERY LIFE | 16 hours |
| INTERFACE | high speed mini USB and NMEA 0183 compatible |
| MEMORY/HISTORY | 16 GB (user space varies based on included mapping) |
Maps & Memory
| PRELOADED MAPS | yes (TopoActive; routable) |
|---|---|
| ABILITY TO ADD MAPS | ✓ |
| BASEMAP | ✓ |
| AUTOMATIC ROUTING (TURN BY TURN ROUTING ON ROADS) FOR OUTDOOR ACTIVITIES | ✓ |
| MAP SEGMENTS | 3000 |
| INCLUDES DETAILED HYDROGRAPHIC FEATURES (COASTLINES, LAKE/RIVER SHORELINES, WETLANDS AND PERENNIAL AND SEASONAL STREAMS) | ✓ |
| INCLUDES SEARCHABLE POINTS OF INTERESTS (PARKS, CAMPGROUNDS, SCENIC LOOKOUTS AND PICNIC SITES) | ✓ |
| DISPLAYS NATIONAL, STATE AND LOCAL PARKS, FORESTS, AND WILDERNESS AREAS | ✓ |
| EXTERNAL MEMORY STORAGE | yes (32 GB max microSD™ card) |
| WAYPOINTS/FAVORITES/LOCATIONS | 5000 |
| TRACKS | 200 |
| NAVIGATION TRACK LOG | 10000 points, 200 saved tracks |
| NAVIGATION ROUTES | 200, 250 points per route; 50 points auto routing |
Sensors
| HIGH-SENSITIVITY RECEIVER | ✓ |
|---|---|
| GPS | ✓ |
| GLONASS | ✓ |
| GALILEO | ✓ |
| QZSS | ✓ |
| BAROMETRIC ALTIMETER | ✓ |
| COMPASS | Yes (tilt-compensated 3-axis) |
| GPS COMPASS (WHILE MOVING) | ✓ |
| MULTI-BAND FREQUENCY SUPPORT | ✓ |
Daily Smart Features
| SMART NOTIFICATIONS ON HANDHELD | ✓ |
|---|---|
| VIRB® REMOTE | ✓ |
| PAIRS WITH GARMIN CONNECT™ MOBILE | ✓ |
Outdoor Recreations
| POINT-TO-POINT NAVIGATION | ✓ |
|---|---|
| AREA CALCULATION | ✓ |
| HUNT/FISH CALENDAR | ✓ |
| SUN AND MOON INFORMATION | ✓ |
| GEOCACHING-FRIENDLY | Yes (Paperless) |
| CUSTOM MAPS COMPATIBLE | yes (500 custom map tiles) |
| PICTURE VIEWER | ✓ |
Outdoor Applications
POINT-TO-POINT NAVIGATION | ✓ |
|---|---|
AREA CALCULATION | ✓ |
HUNT/FISH CALENDAR | ✓ |
SUN AND MOON INFORMATION | ✓ |
GEOCACHING-FRIENDLY | Yes (Paperless) |
CUSTOM MAPS COMPATIBLE | yes (500 custom map tiles) |
COMPATIBLE WITH GARMIN EXPLORE™ APP | ✓ |
|---|---|
GARMIN EXPLORE WEBSITE COMPATIBLE | ✓ |
Connections
CONNECTIONS WIRELESS CONNECTIVITY | yes (BLUETOOTH®, ANT ®) |
|---|
